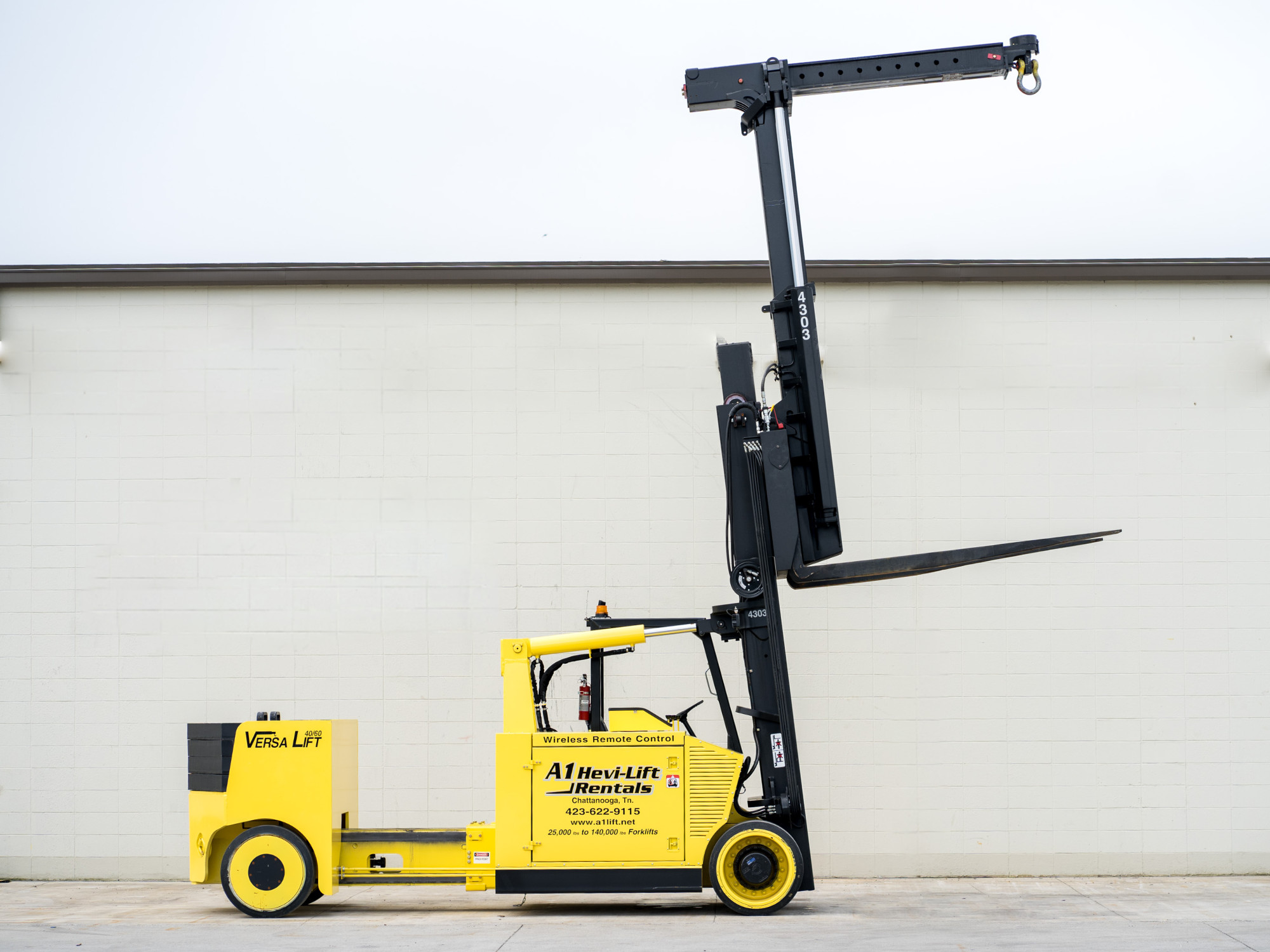

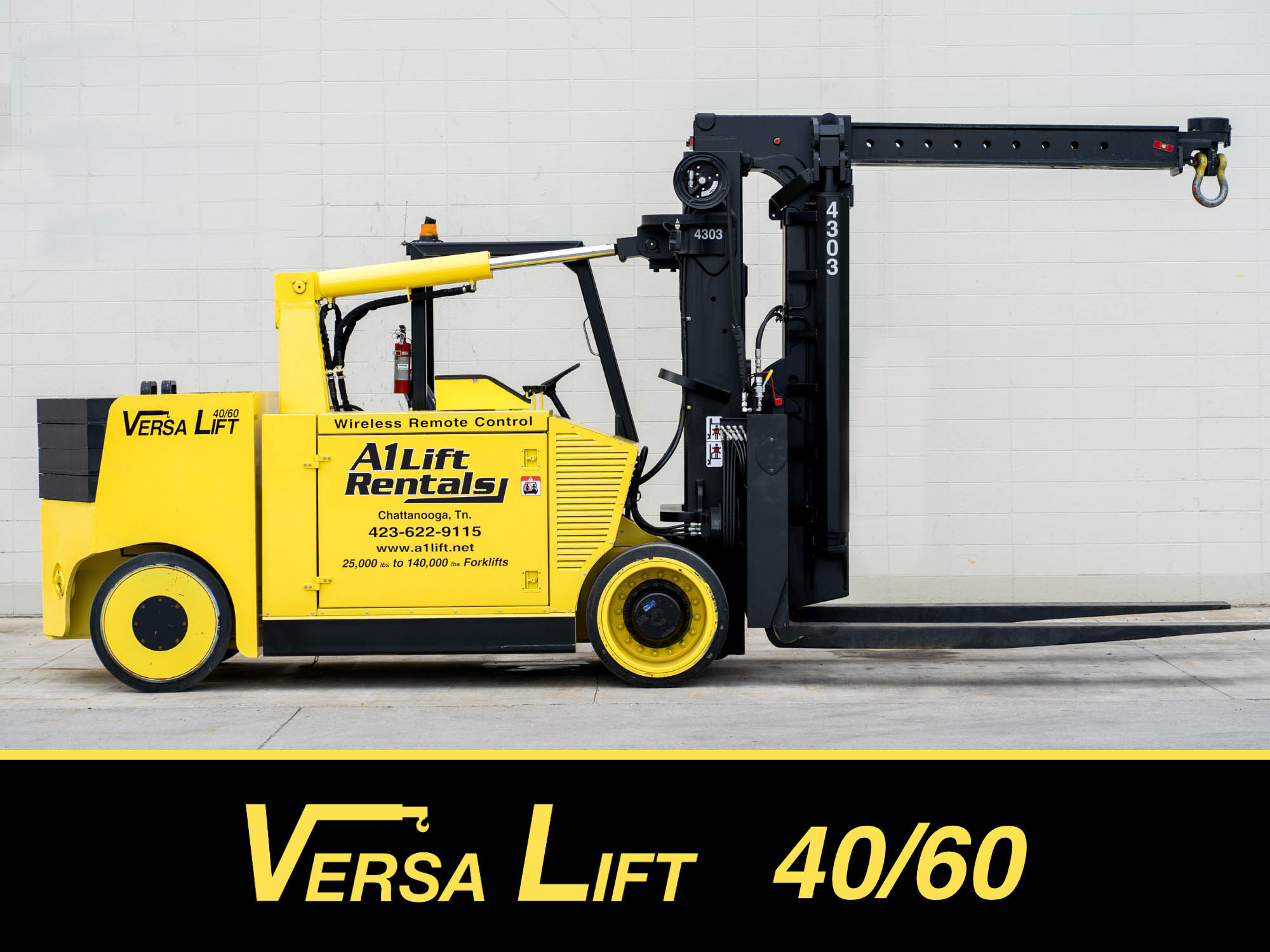

Versa-Lift 40/60 Forklift

  • Versa-Lift 40-60

The Versa-Lift 40/60 forklift can handle loads of 40,000 pounds with the base retracted and up to 60,000 pounds with the base extended. The hydraulic boom attachment gives the Versa-Lift 40/60 crane capability. The Versa-Lift 40/60 is extremely maneuverable, powerful, and easy to use.

Versa-Lift 40/60 Information:

Versa-Lift 40/60 Specs Downloads
Engine: GM 3.0L  40/60 Data Sheet

Features

Lifting Capacity

Schematics

Versa-Lift 40/60 Data Sheet

Transmission: Rexroth Hydrostatic
Drive Axle: Rockwell Planetary Drive
Tires: Front 28X10X22 Poly
Rear 22X10X22 Poly
Grade: Empty 47%
Loaded 20%
Tilt: Forward 12°
Back 7°
Weight: Gross 58,000 lbs
Boom 5,500 lbs
Forks 3,000 lbs
Boom Reach: 26′ (to center of pin)
Load Capacity: 40,000 lbs @ 36″ retracted
60,000 lbs @ 36″ extended
Width: 72″
Wheelbase: 98″ retracted
146″ extended
Misc: – Boom removes in minutes with special boom stand
– Horizontal boom retracts while using forks
– 2-stage direct roller mast
Versa-Lift 40/60 Lifting Capacity
Slab Weight (lbs)
3750
Number of Slabs
4
Standard Wheel Base (in)
98
 Versa-Lift 4060 Lifting Capacity
